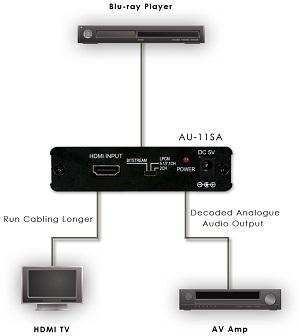

The AU-11SA is an advanced solution for HDMI to HDMI repeating with Audio de-embedding. Its compatible with v1.3 HDMI specifications, a cutting edge technology which defines the transfer of deep colour (12 bit) video with a high bandwidth of up to 225Mhz. Connect to source and display (HDMI), select the required audio format & output your audio format to your amplifier.This device has advanced firmware allowing audio to be de-embedded without the need to connect the HDMI display (no sink-end required).
•HDMI audio de-embedder with built in repeater
•Compliant with v1.3 HDMI, HDCP 1.1 and DVI 1.1 standards
•Supports un-compressed digital LPCM 7.1, 5.1 or 2 channels and compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio) through HDMI input and output ports
•Output resolution follows input resolution. Video pass though, no scaling
•HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
•Supports LPCM 7.1, 5.1 or 2 channel output through multichannel analogue output ports
•Supports digital Dolby 5.1/2 and LPCM 2 channels output through optical output
•Supports CEC bypass
•Supports 3D signals
•Supports xvYCC
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x LowFrequencyEffect(LFE) & Front Centre(FC)]
1x 3.5mm Stereo mini-jack [1x RearLeft(RL) & RearRight(RR)]
1x 3.5mm Stereo mini-jack [1x RearLeftCentre(RLC) & RearRightCentre(RRC)]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
PSU: 5V/2.6A
Dimensions 102mm [W] x 146mm [D] x 25mm [H]
Net Weight 500g
Gross Weight 780g
