FT-SDS（R）/（G）- High performance upgrade schuko sockets
Rating:
Rhodium Plated or 24 k Gold Plated Non-magnetic conductors
High performance upgrade schuko sockets for use in power strips
Features:
Type: 2-pole + earth
Rating: 16A/250V A.C.
Specifications:
•α (Alpha) Pure Copper main Conductor(t：0.5mm)
•Material: Nylon/fiberglass body and Polycarbonate cover
•1.0mm thick Zinc/steel brace plate Base Bracket
•Specified for wire diameters of 2.8mm or 5.5 Sq.mm/10AWG Max. (set screw)
•Dimensions: 54.7mm (L) x 54.7mm (W) x 52.5mm(H)
•Furutech’s total attention to detail and build quality extends right down to a specially designed
patent-pending pressure plate that increases the contact area of the Alpha Conductors.

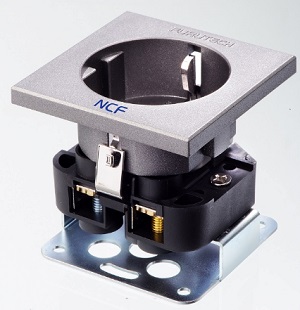

FT-SDS NCF - High End Performance NCF Schuko Socket
Rating:
Type: 2-pole + earth; Rating: 16A 250V A.C
Features:
Nano Crystal Formula - Nano Crystalline, Ceramic and Carbon Powder
Incorporated into select Furutech products, Nano Crystal Formula --- NCF is comprised of a special crystalline material that has two “active” properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional “Piezo Effect” damping properties. The resulting Nano Crystal Formula is the ultimate electrical and mechanical damping material – only found in Furutech products!
Specifications:
- α (Alpha) Pure Copper main Conductor (t: 0.5mm)
- Insulation Materials: Nylon/fiberglass with special “NCF” anti-resonance damping material nano-sized crystalline, piezo ceramic particles and carbon powder
- 1.0mm thick Zinc/steel brace plate Base Bracket
- Specified for wire diameters of 2.8mm or 5.5 Sq.mm/10AWG Max. (set screw)
- Dimensions: 54.8mm (L) x 54.8mm (W) x 52.0mm(H)
- Furutech’s total attention to detail and build quality extends right down to a specially designed patent-pending pressure plate that increases the contact area of the Alpha Conductors.
