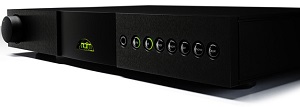

Naim NAIT XS 3 (XS3) Integrated Amplifier
Naim Nait XS 3 - AVAILABLE FROM 31ST JULY 2019. PRE-ORDERS WELCOME

In the 6 years since the last NAIT integrated amplifiers were released, Naim Audio's research and development team have worked on a range of amplifier improvements.

The NAIT XS 3 has received significant performance upgrades, including a built-in phono stage, making it a perfect partner for turntables, as well as for streamers, CD players, or any other music source people want to enjoy with the signature Naim sound.

The NAIT XS 3 offers much of the performance of our reference quality SUPERNAIT 3 in a simpler, slimmer package, combining a 70W power amplifier with 5 analogue inputs plus a phonostage. Its high performance preamplifier stage is as transparent as you would expect from a Naim Audio amplifier, and it also share the single-ended class-A headphone output of its larger sibling.

With Naim's typical obsessive attention to detail - all in service of achieving the most authentic musical performance - the NAIT XS 3 also benefits from the following features:

Alps Blue Velvet volume control
Reed relay input selection
Ceramic insulators for the power transistors
Galvanically isolated microprocessor control section
Microphonic-isolating PCB mounts

Technical Specifications:-
Audio Inputs: Suitable for 2V sources (0.5 to 5.0V)
Input Sensitivity: 130mV
Analogue Inputs: 5 (Analogue line level) + mm phono

AUDIO OUTPUTS
Line outputs fixed (level) AV (DIN), Stream (DIN) 130mV, 600 ohms
Line outputs vaiable (level): Pre-amp (DIN), sub (RCA pair) 775mV, < 50 ohms
Power Outputs: +24V for Naim phono amp
Headphone Outputs: 1/4 inch (6.35mm) TRS Socket

SPEAKER OUTPUTS
Power Output: 70W per channel into 8 ohms, 100W per channel into 4 ohms
Remote Control: Infra-Red (RC5)
Remote Input: 1 x 3.5mm jack on rear
Updates: 1 x USB mini-B

USER CONTROL INTERFACE
Front Panel: Volume control and front panel buttons
Mains Supply: 115V, 230V, 50 or 60Hz
Power consumption (quiscent): 16VA
Power Consumption (Maximum): 350VA

PHYSICAL:
Dimensions: 70mm x 432mm x 314mm (H x W x D)
Weight: 8.5kg
Supplied with: NARCOM-5 remote control

Bookmark and Share




£ 2,499.00 *
* Only available for purchase in-store
