Plinius Kiokio Power Amplifier
Kiokio Power Amplifier

Designed for 19U rack installation the KioKio was developed for the professional audio sector. Home Theatre installers had been using our SB301 and in their words found it 'bullet proof'; used in demonstrations it had been trucked around the USA and while the outside was battered by less than gentle handling the electronics just refused to give up.

So much of the movie experience is the audible part of the show and amplifiers used in dedicated home theatre installations cannot give up. Reliability is the key for professional installers that have to service their installations so this unit meets their needs wonderfully.

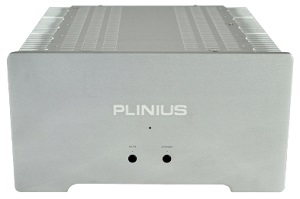

Of course it's a Plinius product so it looks good too and sometimes it's a shame to see it hidden in a rack. Its modern slim line design graces any audio system cabinet when used for dedicated two channel audio.

Features:-

Narrow Profile
This design enables the amplifier to fit within a standard 19U rack or equipment shelf and was developed to allow for studio use and multi-amplifier home theatre installations.

Amplifier Configuration Selector (ACS) switch

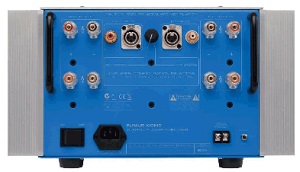

The rear panel ACS switch allows for the amplifier to be configured for Stereo RCA or XLR modes.

Remote Trigger Input
When connected to a preamplifier trigger output, the amplifier will switch out of Standby and be ready for use when the preamplifier is taken out of standby.

Ground Lift Switch
This allows for the signal ground to be isolated from the main chassis earth. This can assist in resolving unwanted ground loops or hum due to duplicate ground paths in some systems.

WBT and Neutrik Connectors
High quality WBT RCA and Neutrik XLR input connectors are fitted along with WBT output speaker terminals to ensure a low distortion interface between your cables and the amplifier.

Auricap Capacitors
Audience AV supply the Auricap XO capacitors used in key areas of the circuit. The Auricap was chosen for its superior clarity and dynamic ability.

Siltech Wiring
Siltech premium 'G7' silver/gold wire provides a perfect connection between components to give clear, fast and detailed presentation of the music signal.

Aluminium Construction
The aluminium construction provides a rigid non-magnetic housing to eliminate unwanted magnetic fields that can interfere with the sensitive audio signals.

Technical Specifications:-

POWER
310 watts RMS per channel into 8 ohms.
470 watts RMS per channel into 4 ohms.
Both channels driven from 20Hz to 20kHz at less than 0.2% total harmonic distortion

FREQUENCY RESPONSE
20Hz to 20kHz ±0.2dB
-3dB at 70kHz

DISTORTION
Typically < 0.05% THD at rated power
0.1% THD and IM worst case prior to clipping

CURRENT OUTPUT
100A short duration peak per channel Fuse protected

RISE TIME
Typically 5µs

PHASE RESPONSE
+0° at 20Hz and -14° 20kHz

HUM & NOISE
100dB below rated output 20Hz to 20kHz, A-weighted

INPUT IMPEDENCE
47k ohms

GAIN
RCA Inputs: 32dB
Balanced Inputs: 38dB

POWER/CURRENT CONSUMPTION
900W
1.6A (370W) Class AB Idle
0.2A (46W) Standby

DIMENSIONS
Height: 220mm (8 3/4 ")
Width: 400mm (15 3/4")
Depth: 420mm (16 3/4")
Weight: 32kg (70lb)
