The Xtension 10 is an ideal solution for anyone who is looking for the exceptional sound quality of the standard Xtension in a more compact size and at a more appealing price.
The Xtension 10 incorporates all of Pro-Ject's 20 years experience in turntable design.
Chassis
The chassis is made from MDF filled with metal sand, which gives a high mass and is non-resonant. But in addition the turntable also uses magnetic feet, which decouple the main plinth from its base. The result of this combination is a merging of the influential 'mass loaded' and 'floating turntable' design principles.
Platter
Instead of the old-standard adoption of pure metal for a main platter, Pro-Ject researched and uncovered a perfect alloy material, which has then be damped on the inner side with Sorbothane®. Taking this base structure, they've then glued recycled Vinyl records to the top (which act as a perfect mat) and baked this 'sandwich' before precision balancing it. The Xtension 10 subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball-bearing, with magnetic suspension.
Tonearm
The base of the included Pro-Ject 10cc Evolution Tonearm also benefits from 'high-mass' technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14g, it comes with a set of 4 different Sorbothane®- damped counterweights.
Finally, the Xtension 10 is also supplied with a beautiful dustcover with adjustable hinges, and is available in three high-gloss lacquer finishes.
Key Features:-
•Super-heavy 22 kg belt drive turntable
•Mass-loaded magnetic-floating subchassis
•Precision balanced sandwich-platter
•Inverted ceramic ball bearing with magnetic support
•Heavy weight record clamp
•Extremely low level of natural resonance
•Perfect decoupling through magnetic feet

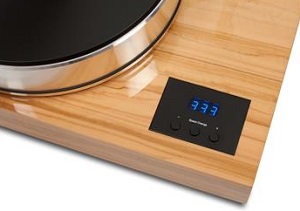

•Electronic speed control 33 / 45 / 78 rpm
•Tonearm 10cc Evolution made from carbon fibre
•Inverted tonearm bearings (ABEC 7 quality)
Please note: You can add the flagship Ortofon Cadenza Black to this model (Normally not supplied with a cartridge) saving £750 off the cartridge price. Alternatively If you're looking for a recommendation, please give us a call to discuss your options.
Technical Specification:-
Speeds:
33 / 45 / 78 RPM
(Speed Box DS Built-In)
Acrylic Dust Cover: Yes
Tonearm Cable Included: Pro-Ject Connect-It 5P-C
Aluminium Feet:
Magnetically Supported
Sorbothane Damped
T/T Main Bearing Damping: Heavy-Weight Metal Block
Maximum Speed Variance: ± 0.08%
Maximum Wow & Flutter: ± 0.01%
Rumble: -73dB
Platter Weight / Diameter: 5.7kg / 300mm
Effective Arm Length / Overhang: 254mm / 16mm
Effective Tonearm Mass: 8.5g
Tracking Force Range: 10 - 30mN
Cartridge Weight Range:
4 - 14g
(4 Different Counterweights)
External Power Supply:
220 - 240V / 50Hz Supply
15V / 1000mA DC
Dimensions (W x H x D):
480 x 235 x 400
480 x 495 x 535 (Lid Open)
Weight: 22kg
