A21SE Signature Integrated Amplfier
The special edition A21SE integrated amplifier builds on the strengths of the classic A21. Offering pure class A single ended operation, the sound remains distinctively ‘Sugden’. Upgraded with a fifty percent larger power supply and increased power output, dynamics are even more impressive. A sophisticated pre-amplifier stage is another improvement on the A21. This provides greater clarity without added brightness producing crystal clear highs. The larger power supply provides greater control over a wider range of loudspeakers and improved micro dynamics for low level listening.
Technical Specification:-

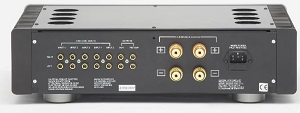

Facilities:
Inputs: Five line level operated by relays
Outputs: One pre-out (variable), one tape out
Volume control:One pair of stereo multi-way binding posts Remote control (RC5 handset included)
Specifications:
Line Input sensitivity: 110mV @ zero attenuation for full output
Power output: 30 Watts into 8 Ohms both channels working 40 Watts into 4 Ohms both channels working
Frequency response: +/-1dB 12Hz-141kHz
Bandwidth:6Hz-280kHz
Signal to noise: More than 90dB
Packed weight: 15Kg
Dimensions: 115 x 430 x 360mm
