Unico 150
Unison Research's Unico 150 takes on the flagship mantle from the company’s well-established Unico 100 integrated amplifier. Designed and developed in line with specific sonic and scientific criteria set by the design team at Unison Research, the Unico 150 is something truly unrivalled.
The Unico 150’s dual mono design gives this amplifier more power and control of your music. Boasting 220W (4Ω) per channel the Unico 150 is capable of driving some of the most demanding loudspeakers with ease and aplomb.

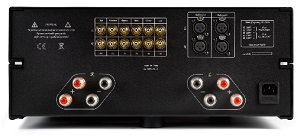

On the back of the Unico 150 flexibility is available in spades with a selection of inputs including two balanced XLR as well as standard RCA. There is also 4 + 4 speaker terminals allowing for bi-wiring, and a subwoofer output to add even more depth and enthralment.
Created from the most premium components there is no doubt that the Unico 150 will offer enjoyment and listening pleasure for years to come.
Key Features:
•Audiophile grade integrated amplifier
•Output power 220 + 220W at 4Ω
•ECC83 (12AX7) valves used at input stage
•Additional balanced input (XLR)
•Subwoofer output
•Bi-wirable speaker outputs

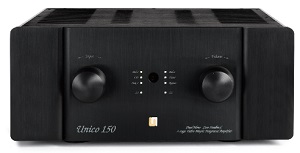

•Premium black finish available
•RC2 remote included
Technical Data:
Output Power: 150 + 150W RMS (8Ω)
220 + 220W RMS (4Ω)
Frequency Response: -1dB (@ 12Hz, 45kHz), -3dB (@ 6Hz, 80 kHz)
Input Impedance: 24kΩ / 100pF
Input Sensitivity: 860mV RMS
Input Stage: Pure Class A, 2 x ECC83 Triode (totem pole)
Driver Stage: Pure Class A, 2 x 6H30 Triode (totem pole)
Output Stage: Class AB thermo-stable,
Complementary HEXFET (4 Pairs per channel)
Inputs: 3 x RCA pair (Unbalanced)
2 x XLR pair (Balanced)
1 x Bypass RCA pair (Unbalanced)
Line Outputs: 1 x Tape (Fixed)
1 x Sub (Variable)
Output Connectors: 4+4 (Bi-Wiring)
Global Feedback Factor: 0dB
Local Feedback Factor: 16dB
Total Harmonic Distortion: < 0.15% @ (1kHz, 1W)
< 0.25% @ (1kHz, 10W)
< 0.35% @ (1kHz, 100W)
< 0.9% (20 – 20kHz, 150W)
Output Resistance: < 0.4Ω
Power Consumption: 550W (at Max. Power, 8Ω)
Dimensions (W x D x H): 43.5 x 18 x 44cm
Weight: 25kg
